Features: Direct fitment compatible with 2014-2019 Toyota 4Runner. Allows you to mount one or two 30in light bar(s) in the lower grille opening. CAD-designed for perfect fitment and OEM-like appearance. Utilizes existing mounting points for easy installation - no cutting or drilling required.

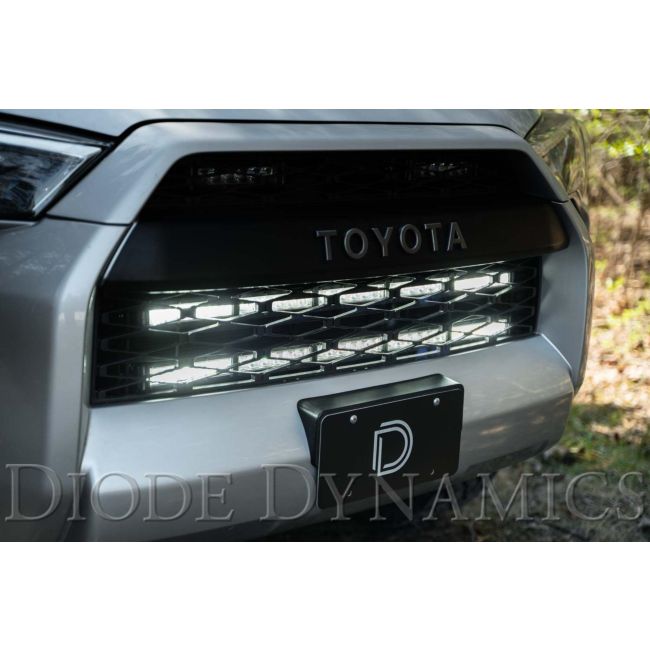

Perfect Fitment: The Stealth LED Lightbar Kit compatible with Toyota 4Runner 2014-2019 from Diode Dynamics allows you to mount either a single SS30 Stage Series 30in LED Light Bar or dual Stage Series 30in LED Light Bars in the lower grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Designed For Performance: Using optical simulation modeling Diode Dynamics Stage Series LED light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern much more focused than older LEDs on the market.
Functional Patterns: All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are there is a Stage Series optic for you!
Note: These specifications are per pod / each!
Intensity (White Driving): 275,000cd
Intensity (White Combo): 217,000cd
Intensity (Amber Driving): 165,000cd
Intensity (Amber Combo): 113,800cd
Raw Lumens (White): 11,400lm
Raw Lumens (Amber): 5,700lm
Color Temp (CCT): 2000K, 6000K
Beam Angle: Driving, 20 x 8, Combo (Driving and Flood)
Power (watts): 137.2
Operating Voltage: 9-24V
Current (amps @ 14V): 9.8
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB
Cooling: Passive, heatsink
| Length | 3in |
|---|
