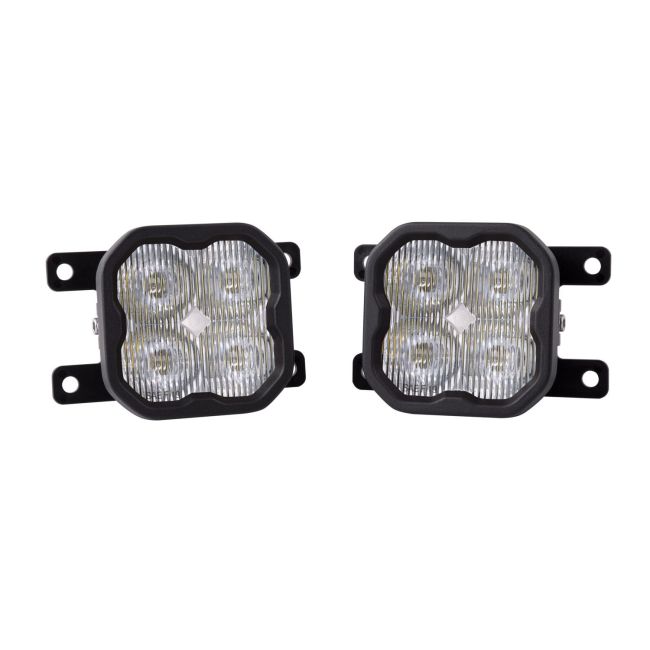

SS3 LED Fog Light Kit for 2018-2026 Subaru Crosstrek

As low as $379.95

NOTE: Specifications listed here are for each individual pod.

Lens Color/Optics	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Measured Output (lumens)	Raw Output (lumens)	Output Color
Fog White Sport	10,600 cd	106 lux	1,520 lm	2,262 lm	6000K White
Fog White Pro	11,900 cd	119 lux	3,000 lm	5,796 lm	6000K White
Fog White Max	18,000 cd	180 lux	3,500 lm	7,920 lm	6000K White
Fog Yellow Sport	9,050 cd	91 lux	1,300 lm	1,930 lm	3000K Yellow
Fog Yellow Pro	10,900 cd	109 lux	2,700 lm	5,220 lm	3000K Yellow
Fog Yellow Max	12,500 cd	125 lux	3,500 lm	7,920 lm	3000K Yellow

Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5

Backlight Power (watts): 0.4

Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3

Backlight Current (amps @ 12.8V): 0.03

Operating Voltage: 9-30V

Beam Angle: Fog, 80°x8°

Polarity: Polarity Specific

Operating Temperature: -40C to 85C (-40F to 185F)

LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX

Connector(s): Deutsch DT Input

Driver Features: Constant Current

Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

Cooling: Passive, Pin-Fin heatsink

Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

Intrusion Ratings: IP69K Waterproof, High Pressure

Application: Fog Light

Make: Subaru

Model: Crosstrek

Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026

100% Satisfaction Guarantee

Availability:

In stock

Only %1 left

SKU

diod-ss3fog-3000

SS3 LED Fog Light Kit for 2018-2026 Subaru Crosstrek is available to buy in increments of 1

More Information
