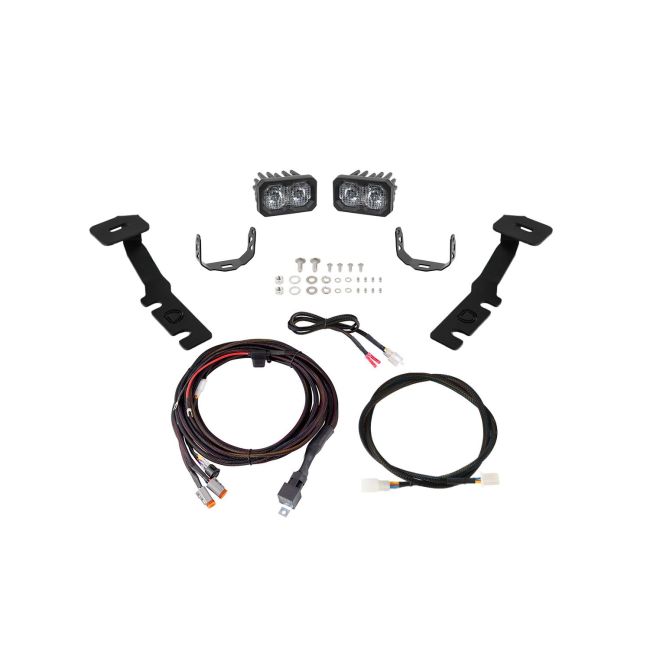

Stage Series Backlit Ditch Light Kit for 2019-2025 Toyota RAV4
As low as
$59.95
Specifications
NOTE: Specifications listed here are for each individual pod.
| SS3 LED Pods | |||||
|---|---|---|---|---|---|
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
| Combo/Driving White Sport | 31,500 cd | 315 lux | 1,520 lm | 2,262 lm | 6000K White |
| Combo/Driving White Pro | 35,100 cd | 351 lux | 3,000 lm | 5,796 lm | 6000K White |
| Combo/Driving Yellow Sport | 28,100 cd | 281 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
| Combo/Driving Yellow Pro | 33,406 cd | 334 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
| C2 2.0 LED Pods | |||||
|---|---|---|---|---|---|
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color | |
| Combo/Driving White Sport | 11,500 cd | 115 lux | 1,190 lm | 6000K White | |
| Combo/Driving White Pro | 20,000 cd | 200 lux | 3,140 lm | 6000K White | |
| Combo/Driving Yellow Sport | 8,100 cd | 81 lux | 1,190 lm | 3000K Yellow | |
| Combo/Driving Yellow Pro | 15,000 cd | 150 lux | 3,140 lm | 3000K Yellow | |
SS3 Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7
C2 2.0 Current (amps @ 12.8V): Sport: 1.17, Pro: 1.8
Color Temp (CCT): 3000K, 6000K
Beam Angle: Combo (Driving and Flood)
Power (watts): SS3 Sport: 14.5, SS3 Pro: 36, C2 2.0 Sport: 15, C2 2.0 Pro: 23
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP69K Waterproof, High Pressure
Make: Toyota
Model: RAV4
Years: 2019, 2020, 2021, 2022, 2023, 2024, 2025
What's Included
100% Satisfaction Guarantee
Availability:
In stock
Only %1 left
SKU
diod-ssdtch-3092
Stage Series Backlit Ditch Light Kit for 2019-2025 Toyota RAV4 is available to buy in increments of 1
More Information
| Length | 3in |
|---|
