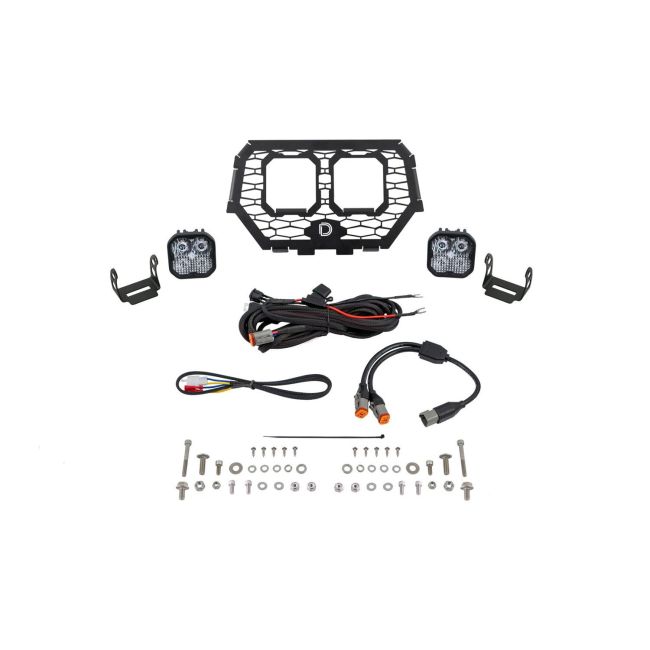

Stage Series LED Grille Kit for 2014-2018 Polaris RZR XP

As low as $59.95

NOTE: Specifications listed here are for each individual pod.

Lens Color/Optics	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Measured Output (lumens)	Raw Output (lumens)	Output Color
Fog Sport White	10,600 cd	106 lux	1,520 lm	2,262 lm	6000K White
Fog Pro White	11,900 cd	119 lux	3,000 lm	5,796 lm	6000K White
Combo Sport White	31,500 cd	315 lux	1,520 lm	2,262 lm	6000K White
Combo Pro White	35,100 cd	351 lux	3,000 lm	5,796 lm	6000K White
Fog Sport Yellow	9,050 cd	91 lux	1,300 lm	1,930 lm	3000K Yellow
Fog Pro Yellow	10,900 cd	109 lux	2,700 lm	5,220 lm	3000K Yellow
Combo Sport Yellow	28,100 cd	281 lux	1,300 lm	1,930 lm	3000K Yellow
Combo Pro Yellow	33,406 cd	334 lux	2,700 lm	5,220 lm	3000K Yellow

Color Temp (CCT): 3000K, 6000K

Beam Angle: Combo (Driving and Flood), Fog, 80°x8°

Current (amps @ 12.8V): 1.1

Polarity: Polarity Specific

Operating Temperature: -40C to 85C (-40F to 185F)

LED Emitter: Luxeon Z ES, Cree XP-L HI

Connector(s): Deutsch DT Input

Driver Features: Constant Current

Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

Cooling: Passive, Pin-Fin heatsink

Intrusion Ratings: IP69K Waterproof, High Pressure

Make: Polaris

Model: RZR XP

Years: 2014, 2015, 2016, 2017, 2018

100% Satisfaction Guarantee

Availability:

In stock

Only %1 left

SKU

diod-ss3grl-4705

Stage Series LED Grille Kit for 2014-2018 Polaris RZR XP is available to buy in increments of 1
