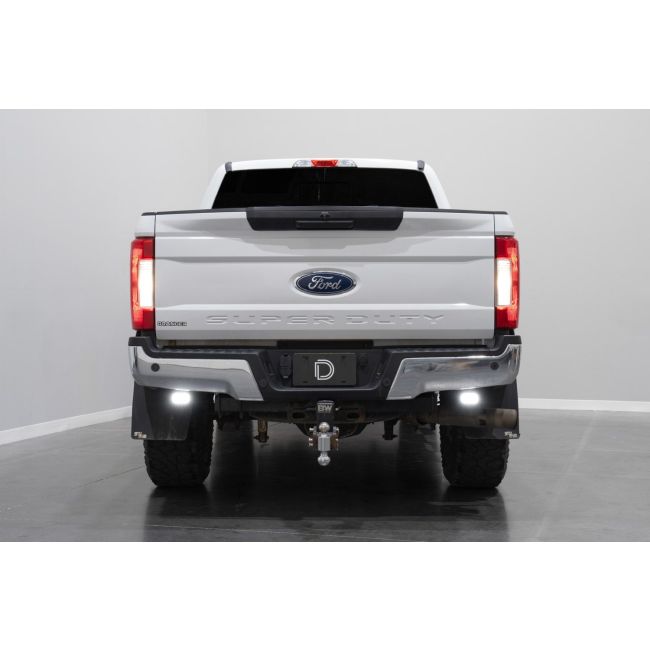

Stage Series Reverse Light Kit for 2017-2022 Ford Super Duty

As low as $39.95

NOTE: Specifications listed here are for each individual pod.

Lens Color/Optics	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Raw Output (lumens)	Output Color
SSC1 Sport	400 cd	4 lux	1,449 lm	6000K White
SSC1 Pro	925 cd	9 lux	2,375 lm	6000K White
C2 2.0 Sport	750 cd	8 lux	1,190 lm	6000K White
C2 2.0 Pro	1,550 cd	16 lux	3,140 lm	6000K White

Datasheet(s) (click to download): ,

Color Temp (CCT): 6000K

Power (watts): SSC1 Sport: 12.8, SSC1 Pro: 19, C2 2.0 Sport: 15, C2 2.0 Pro: 23

Operating Voltage: 9-16V

Polarity: Polarity Specific

Operating Temperature: -40C to 85C (-40F to 185F)

LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED

Connector(s): Deutsch DT Input

Driver Features: Constant Current

Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

Cooling: Passive, Pin-Fin heatsink

Compliance Ratings: SAE J575 Durability Test

Intrusion Ratings: IP69K Waterproof, High Pressure

Unit Weight (lb): SSC1: 0.70, SSC2: 0.93

Product Weight (lb): SSC1: 1.96 SSC2: 2.16

Make: Ford

Model: Super Duty F250/F350/F450/F550

Years: 2017, 2018, 2019, 2020, 2021, 2022

100% Satisfaction Guarantee

Availability:

In stock

Only %1 left

SKU

diod-ssrvse-1321

Stage Series Reverse Light Kit for 2017-2022 Ford Super Duty is available to buy in increments of 1

More Information
